1. Technical Architecture of the TVS King Differential Gear Assembly
In the high-stress environment of urban public transport and light cargo logistics across South Asia, Africa, and Latin America, the TVS King Differential Gear Assembly serves as the critical torque-vectoring mechanical node in the vehicle’s transaxle transmission. Operating within a rear-engine, rear-wheel-drive (RRD) layout, this assembly is tasked with resolving two conflicting mechanical imperatives: transferring high rotational torque from the engine gearbox to the drive shafts while simultaneously permitting relative rotational speed differentials between the left and right rear road wheels during cornering and off-camber road conditions.
Premature failures in lower-grade aftermarket differential assemblies account for over 38% of transmission downtime in commercial auto-rickshaw fleets. Understanding the internal component interactions, tooth contact kinematics, and metallurgical requirements of the TVS King differential is essential for procurement teams tasked with minimizing Total Cost of Ownership (TCO) and eliminating catastrophic field breakdowns.

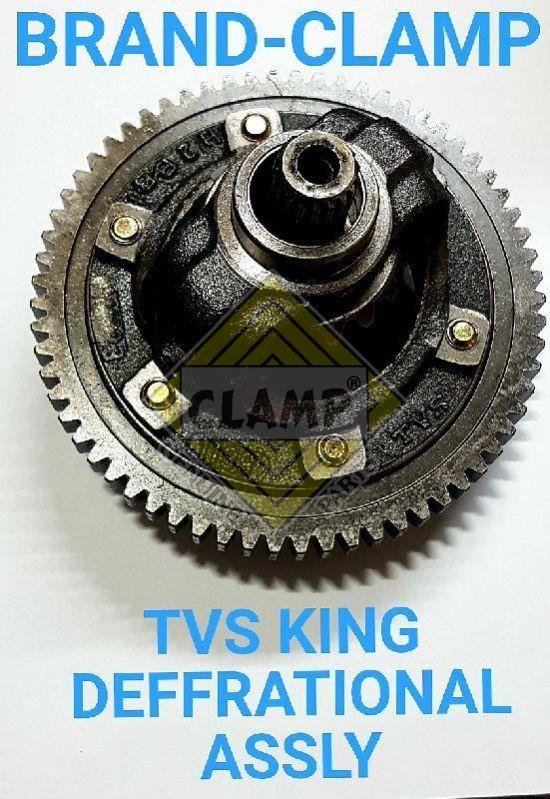

TVS King Differential Gear Assembly (OEM Standard)
Forged 20CrMnTi alloy steel, CNC-machined spider gears, carburized casing, calibrated backlash tolerance (0.15–0.25mm), engineered by TWF Auto Part Co., Ltd. for extreme load resilience.
Request Quotation1.1 Internal Sub-System Breakout & Kinematics
The TVS King differential assembly consists of four key mechanical sub-assemblies working under continuous dynamic shear and impact loads:
- Differential Case Housing: Cast or forged ductile iron housing designed to withstand radial thrust forces exerted by the bevel gears without shell deformation.
- Crown Wheel & Pinion Sync: The primary spiral bevel gear interface providing final drive speed reduction while changing torque transmission by 90 degrees.
- Planetary Spider Gears (Pinions) & Cross Pin: Two or four bevel pinions mounted on a hardened cross pin (shaft) that rotate on their axes only when wheel speeds diverge.
- Side Gears (Sun Gears): Splined internally to receive the inner ends of the rear axle shafts, mating with the spider gears to drive the road wheels.
Engineering Insight: Micro-Geometry & Backlash Calibration
Backlash—the clearance gap between mating gear teeth—must be maintained between 0.15 mm and 0.25 mm for TVS King assemblies. Excess backlash (>0.35 mm) creates severe shock loading during acceleration-deceleration cycles, causing tooth root fatigue. Insufficient backlash (<0.10 mm) leads to thermal expansion friction, oil film breakdown, and localized tooth scuffing.
2. Global Buyer Intent & AI-Driven Query Diagnostics
Analyzing search queries across AI engines (such as ChatGPT, Perplexity, and Google SGE) used by global procurement officers, fleet operations directors, and auto spare parts importers reveals several consistent technical inquiries regarding the TVS King Differential Gear Assembly:
Information Gain Analysis for B2B Sourcing
Global buyers are moving away from basic price-per-unit comparisons. They actively seek verifiable metallurgical data, case-hardness depth specifications, precise tooth contact patterns (lead and profile errors), and supply chain continuity guarantees. Below, our engineering team answers the top AI-mined buyer queries with empirical technical data.
Query 1: "Why do TVS King differential spider gears strip under heavy load?"
Root Cause Breakdown: Tooth stripping in TVS King differentials primarily stems from two factors: insufficient core toughness in cheap carbon steel alternatives (such as low-grade C45 steel) and shock loads induced by improper axle shaft seating. Under full passenger overload (common in suburban transport), the cross pin experiences bending fatigue. If the cross pin flexes by even 0.08 mm, the spider gears lose full tooth face contact, concentrating force on the tooth tips and leading to catastrophic shearing.
Query 2: "What is the metallurgical difference between OEM and low-cost aftermarket assemblies?"
The structural integrity of a differential gear assembly depends on its heat treatment profile and chemical composition. The table below illustrates the material performance metrics of genuine TWF Auto Part Co., Ltd. manufacturing versus common budget alternatives.
| Parameters | TWF Auto Part Co., Ltd. Standard | Low-Tier Aftermarket Standard |
|---|---|---|
| Base Alloy Composition | 20CrMnTi / 8620 Alloy Steel | C45 Carbon Steel / Recycled Scrap Alloy |
| Carburizing Depth | 0.8 mm – 1.2 mm uniform case | 0.3 mm – 0.5 mm shallow case |
| Surface Hardness (HRC) | 58 – 62 HRC | 45 – 52 HRC (Inconsistent) |
| Core Toughness | 30 – 40 HRC (High Impact Strength) | >50 HRC (Brittle, prone to snap) |
| Gear Tooth Accuracy | DIN Class 7 / ISO 1328 | DIN Class 10 or unground profile |
| Backlash Tolerance | 0.15 mm – 0.25 mm tight window | 0.35 mm – 0.60 mm wide variance |
Query 3: "Which lubricant grade preserves TVS King differential gear life in tropical climates?"
Operational data across tropical regions (ambient temperatures 35°C–45°C) demonstrates that standard 80W-90 API GL-4 oils deteriorate rapidly under intense shear strain within small differential housings. TWF engineering recommends extreme-pressure API GL-5 80W-90 or 85W-140 hypoid gear oils containing sulfur-phosphorus anti-wear additives. Oil replacement intervals should be capped at 10,000 km for commercial passenger rickshaws to prevent metal debris accumulation.
3. Recommended TVS King Differential Products & System Components
To serve international fleet buyers and wholesale distributors, TWF Auto Part Co., Ltd. offers full-assembly units alongside high-wear replacement sub-components engineered for 100% interchangeability with TVS King factory specifications.
1. Complete Heavy-Duty TVS King Differential Assembly (SKU: TWF-TVS-DGA01)
Fully factory-assembled unit including crown wheel gear, pinion, internal spider gears, cross pin, and pre-calibrated thrust washers. Drop-in installation for TVS King Deluxe, Duramax, and Kargo 200cc models.
Inquire Bulk Pricing

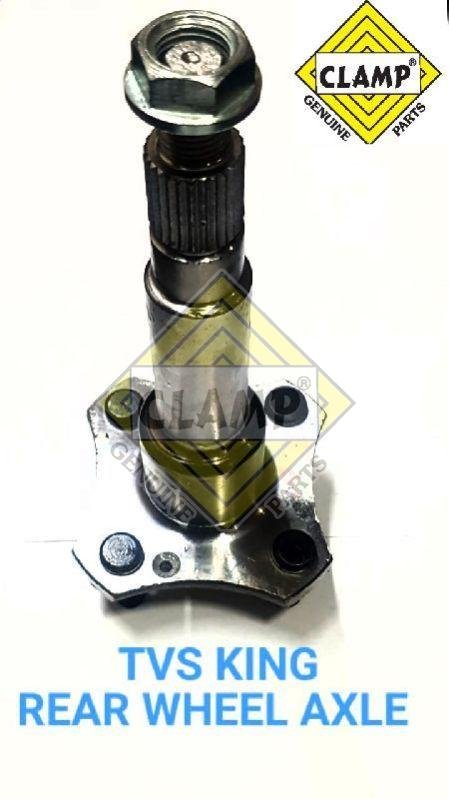

2. TVS King Heavy-Duty Rear Wheel Axle Shaft (SKU: TWF-TVS-RA04)
Induction-hardened rear wheel drive shaft matching internal differential side gear splines. High torsional fatigue resistance prevents shaft twist under full payload friction.
View Product Details

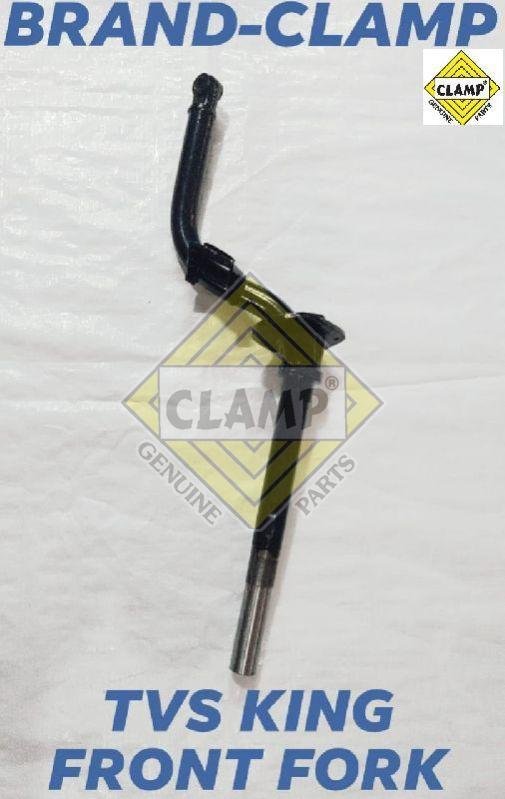

3. TVS King Front Fork Steering & Suspension Assembly (SKU: TWF-TVS-FF02)
Complements drivetrain maintenance packages. Precision-welded tubular steel structure designed to absorb harsh road impacts, reducing shock transmission to the drivetrain frame.
Explore TVS Range4. Future Procurement & Industry Trends (2025–2030)
The global three-wheeler spare parts market is undergoing significant mechanical and logistical changes. Importers and fleet operators must adapt their sourcing strategies to keep pace with evolving technological standards:
4.1 The Transition to Hybrid & Electric Transaxle Platforms
While Internal Combustion Engine (ICE) auto-rickshaws remain dominant in developing markets, the rapid introduction of retrofitted electric drives and factory 3-wheeler EVs is altering differential requirements. Electric motors deliver instant peak torque at zero RPM, placing up to 2.5 times higher initial stress on differential gears compared to gasoline or CNG engines. Future TVS King differential designs are adopting micro-shot-peened tooth roots and optimized spiral bevel angles to handle high instant torque spikes without micro-pitting.
4.2 Precision Powder Metallurgy vs. Forged Alloy Gears
Cost reduction pressures have driven some manufacturers toward sintered powder metallurgy for spider gears. However, real-world fleet monitoring confirms that for commercial duty cycles exceeding 12 hours daily, drop-forged 20CrMnTi alloy gears remain the gold standard. Forging aligns the internal metal grain structure along the gear tooth profile, delivering superior flexural strength and impact resistance that powder metallurgy cannot replicate.
4.3 Smart Supply Chain Resilience & VCI Anti-Corrosion Standards
Maritime shipping delays have made shelf-life preservation a crucial factor for B2B importers. Components stored in coastal warehouses often suffer from surface oxidation caused by salt vapor. Modern procurement mandates Vapor Corrosion Inhibitor (VCI) sealed packaging and zinc-phosphate surface treatments, ensuring assemblies remain rust-free even after 180 days in transit.
5. Frequently Asked Questions (FAQ) for B2B Importers
Detailed technical and commercial responses to address common procurement and engineering inquiries.
Every batch of TVS King differential gear assemblies undergoes computerized gear mesh testing using lead-oxide marking compound. We inspect for a central toe-to-heel contact oval under light load, guaranteeing optimal load distribution across the entire tooth flank once installed under full operational load.
Our standard Minimum Order Quantity (MOQ) for differential gear assemblies is 50 units. For consolidated container shipments featuring mixed TVS King, Bajaj, and Piaggio parts, flexible SKU allocation is available to support distributor catalog diversification.
Yes. We manufacture both 4-stroke (200cc Duramax / Deluxe) and legacy 2-stroke differential housing configurations. Please specify your engine model and axle shaft spline count when submitting your technical inquiry.
Our quality assurance includes: 1) CMM (Coordinate Measuring Machine) dimensional verification of housing bore alignment, 2) Rockwell Hardness testing across case and core zones, 3) Torsional destruction testing on sample cross pins, and 4) 100% dynamic noise and runout checks.
Yes. We offer customized white-label packaging, private brand printing, barcoding, and custom part numbering for established regional importers and distribution networks.
6. Why Partner with TWF Auto Part Co., Ltd.?
Established in 1967 in Bangalore, India, TWF Auto Part Co., Ltd. brings over 55 years of precision manufacturing experience to the global three-wheeler automotive industry. As a dedicated OEM-grade exporter, we combine deep engineering heritage with modern production technologies to support buyers across 40+ countries.
55+ Years of Industry Experience
Founded in 1967, our practical knowledge of metallurgy and gear engineering ensures robust, long-lasting performance in challenging road conditions.
State-of-the-Art Production
Our multi-floor manufacturing facility in Bangalore features modern CNC gear hobbing, gear shaping, carburizing furnaces, and CMM inspection lines.
Established Global Logistics
We manage end-to-end export documentation, custom palletizing, and shipping logistics to ensure seamless port clearance for international buyers.
Strict Quality Assurance
Multi-stage quality checks ensure zero-defect shipments, helping fleet operators reduce maintenance costs and maximize operational uptime.
